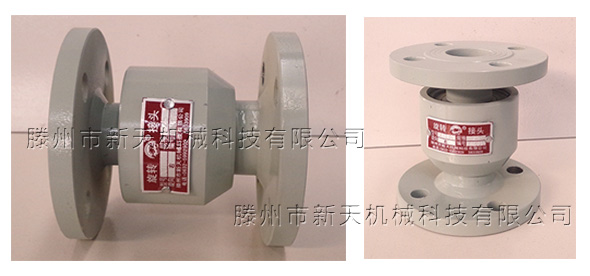

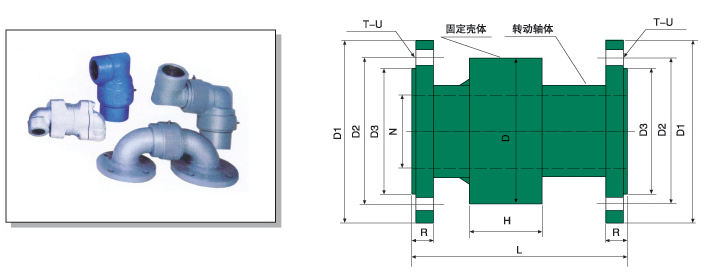

XTDN往复回转及鹤管旋转接头参数
|
规格型号
|
D
|
D1
|
D2
|
D3
|
N
|
L
|
H
|
R
|
T
|
U
|
|
DN20
|
62
|
105
|
75
|
56
|
20
|
158
|
80
|
13
|
4
|
14
|
|
DN25
|
74
|
115
|
85
|
65
|
25
|
100
|
40
|
14
|
4
|
14
|
|
DN32
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
DN40
|
115
|
150
|
110
|
84
|
40
|
171
|
75
|
18
|
4
|
18
|
|
DN50
|
132
|
165
|
125
|
99
|
50
|
204
|
92
|
20
|
4
|
18
|
|
DN65
|
158
|
185
|
145
|
122
|
65
|
211
|
95
|
20
|
4
|
18
|
|
DN80
|
160
|
200
|
160
|
138
|
80
|
231
|
80
|
20
|
8
|
18
|
|
DN100
|
196
|
220
|
180
|
156
|
100
|
240
|
95
|
22
|
8
|
18
|
|
DN125
|
226
|
250
|
210
|
136
|
125
|
305
|
124
|
22
|
8
|
18
|
|
DN150
|
275
|
258
|
240
|
212
|
150
|
312
|
132
|
22
|
8
|
22
|
|
DN200
|
380
|
340
|
295
|
266
|
200
|
405
|
200
|
25
|
12
|
22
|
|
DN250
|
460
|
405
|
355
|
319
|
250
|
442
|
217
|
29
|
12
|
26
|
|
DN300
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
DN350
|
560
|
470
|
470
|
429
|
350
|
396
|
210
|
38
|
16
|
26
|
